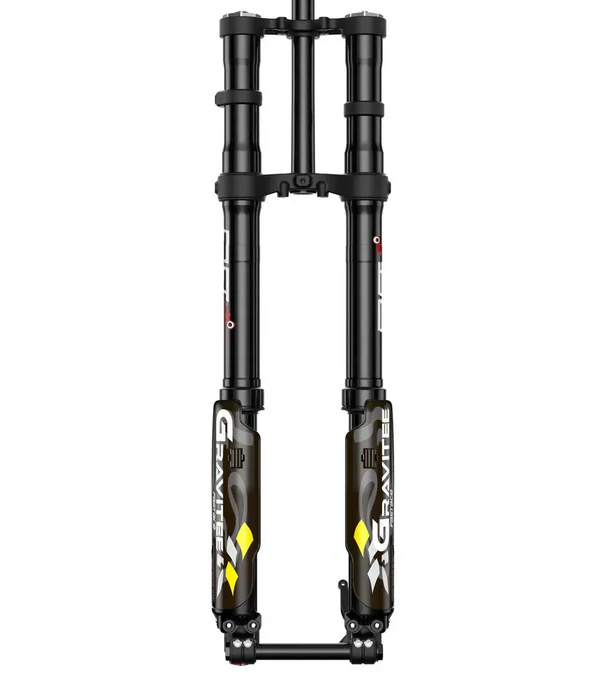

AHX12RV (3.0) FastAce Gravitee Fork for E-Moto. Surron, E-Ride Pro, Talaria

This is FastAce's newest fork for E-Moto (ALX12RV). Fits light e-motos like the Surron LBX, Talaria MX3, MX4, and XXX, E Ride Pro SS 2.0, Ventus, 79-Bike, and many other similar style bikes. Also referred to as the "Gravitee fork"; it's bigger and beefier than its predecessor. Has 18 clicks of both high and low-speed compression damping adjustment.

Fitment Bike:

• Talaria MX3 / MX4 / XXX

• SurRon LBX, LBS, L1E

• Segway X-260 / X-160

• E-Ride Pro S / SS 1.0/2.0

• Rawrr Mantis (requires new upper tapered bearing, sold separately)

• 79 Bike Falcon M

• Ventus One

• RFN Apollo

• Rerode R1

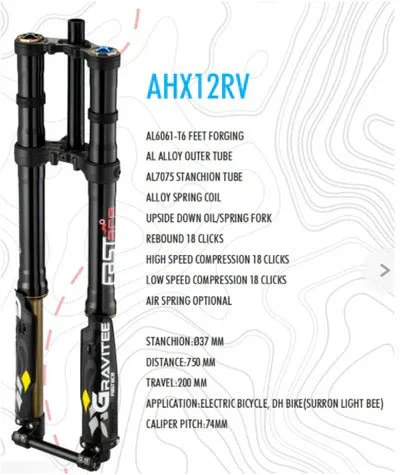

FEATURES:

• Legs Material: 2000 Series Aluminium

• Leg Diameter: 37mm

• Axle: 20*10*M14*P1.5*170L

• Steerer: 1-1/8" Straight

• Spring:  coil spring

• Adjustments: Rebound, HS and LS Compression

• 18 steps High Speed and 18 steps Low Speed Compression Damping

• 18 steps Rebound Damping

• Crown: Forged

• Brake Post Mount: 203mm (compatible with up to 223mm rotors)

• Max Tire Width: 67mm

• Ride Height: 22.9in

• Travel: 200mm

Weight Scale (Approximate):

• 38lbs-60lbs Progressive spring: 176lb-265lb rider weight (realistically 150-225lb)


• 60lbs: 220lb-265lb riders weight (realistically 190-225lb)

Fitment: AHX12RV (3.0) FastAce Gravitee Fork for E-Moto. Surron, E-Ride Pro, Talaria

• Surron Light Bee X

• Surron Light bee S

• Segway X260

• Segway X160

• Eride Pro

• Eride pro SS

• Eride pro SR

• Eride pro S

• Eride pro SS 2.0

• Eride pro SS 3.0

• 79bike Falcon-M

• Ventus one

• Talaria Sting MX3

• Talaria Sting MX4

• Talaria Sting MX5

• Talaria XXX

• Altis Sigma

• Throne SRPNT

• Rerode R1

• Rawrr Mantis

• Rawrr Mantis X

• Apollo/RFN Ares Rally Pro

• Beta Explorer Emoto

This product may be compatible with more models than shown above. Please see the product description for full details, or contact us for help with fitment.
