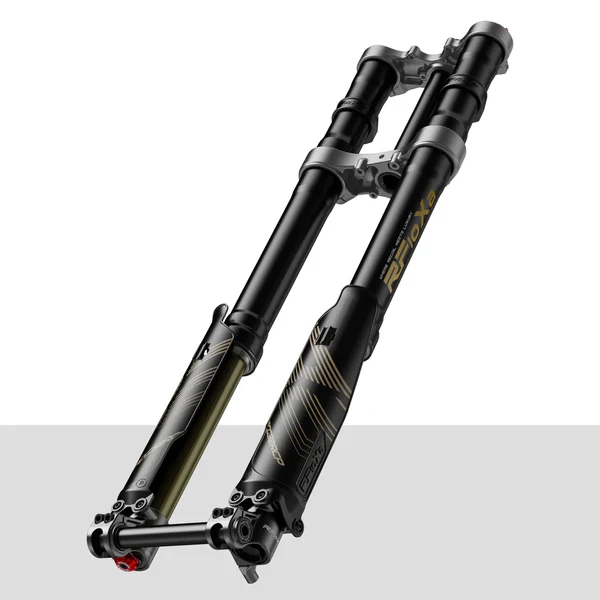

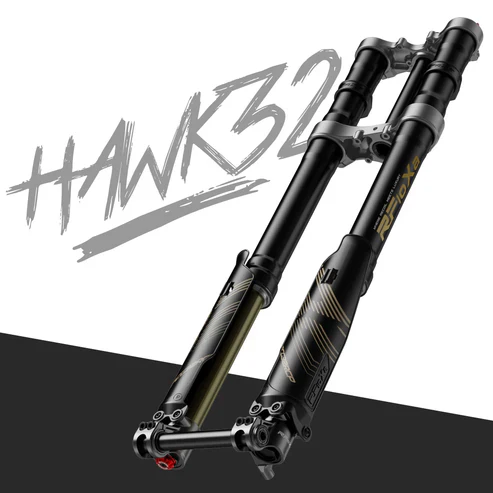

RFLOXA Hawk32 Front Fork – 203mm Travel | Performance Suspension | by RFLOXA | for Surron, Talaria, E-Ride Pro & More

Take your ride further, without breaking the bank.

The RFLOXA Hawk32 Front Fork is a serious upgrade for electric dirt bikes and downhill machines. With 203mm of responsive travel and a refined inverted oil-spring damping system, this fork delivers dialed-in performance across rugged terrain, jumps, and high-speed descents. Whether you're chasing better control or smoother landings, the Hawk32 brings pro-level suspension tech at an accessible price point.

Need more travel and a CNC triple clamp? Check out the Hawk32 PRO — it bumps travel to 228mm and adds upgraded features across the board.

Key Features

• 203mm of plush suspension travel (non-upgradeable — see PRO for 228mm)

• 37mm stanchion diameter for added strength

• 74mm caliper mount spacing — fits 203mm rotors (220mm with adapter)

• Inverted oil-spring design with independent leg function

• Multi-stage adjustability:

  • High-speed & low-speed compression

  • Rebound damping

  • Manual spring preload knobs

• Oil pressure bottom-out system for end-of-travel support

• Dual valve plates for consistent compression control

• Cold-resistant, low-friction suspension oil

• Forged AL6061-T6 brackets + AL7075-T6 alloy tubes

• 55CRSI spring wire for long-term durability

Spring Weight Options

• 45 lb spring — For riders ≤ 100kg (≤ 220 lbs)

• 60 lb spring — For riders 100–130kg (220–285 lbs)

• Progressive 45–60 lb spring — For riders 80–130kg (175–285 lbs)

Tech Specs

• Center Distance: 750–800mm

• Main Piston Travel: 203mm

• Tube Diameter: 37mm

• Brake Mount Spacing: 74mm

• Rotor Compatibility: 203mm standard, 220mm with adapter

• Adjustments: HSC/LSC compression, rebound, spring preload

• Damping System: Inverted oil-spring, independent leg function

• Warranty: 1-Year Manufacturer Warranty

Fitment Compatibility

• Surron LBX / LBS / L1E

• Talaria MX3 / MX4 / XXX

• Segway X160 / X260

• E-Ride Pro S / SS 1.0 / SS 2.0

• RAWRR Mantis

• 79 Bike Falcon M

• Ventus One

• RFN Apollo

• Rerode R1

Important Fitment Notes

• Frame Clearance: Some models like the Talaria MX4 or Sting R may require light grinding on the outer fork tube for proper frame clearance — similar to Fox 40 setups on Surron.

• Brake Compatibility: Not plug-and-play with larger calipers like those on Altis Sigma, SRPNT Moto, or E-Ride Pro SS 3.0 / SR. May require a specific adapter (in development).

• Using Volar Sport Racing calipers? Reach out — fitment depends on rotor, wheel, and frame combo.

FAQ

Q: What’s the difference between the Hawk32 and Hawk32 PRO?
A: The Hawk32 uses a forged clamp with 203mm travel. The PRO includes a CNC clamp and 228mm of travel for more aggressive riders.

Q: Why adjust spring preload?
A: Adjusting spring preload lets you fine-tune initial suspension feel — softer or stiffer based on your setup. Adds more tuning than entry-level forks like the Fastace ALX13RC.

Need help dialing it in? Contact the REV Rides team — we’re here to walk you through setup.

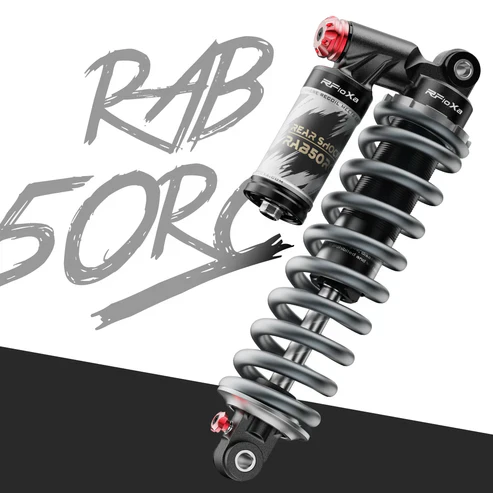

RFLOXA RAB50RC Rear Shock – 265mm | Adjustable Performance Shock | by RFLOXA | for Surron, Talaria, Altis, E-Ride Pro & More

High-Performance Suspension That Won’t Break the Bank

The RFLOXA RAB50RC Rear Shock brings pro-level control and comfort to your e-moto. With oil-gas separation, an external nitrogen reservoir, and multi-stage rebound and compression adjustability, this shock is ready for everything from rocky climbs to flowy descents.

If you’re upgrading your Altis, E-Ride Pro, Surron, or Talaria, this is a top-tier option that rivals premium shocks at a fraction of the cost.

⚠️ Preload Setup Note:

Recommended spring preload: ~10mm. Avoid overtightening — too much preload can deform the spring and reduce lifespan.

Key Features

• External nitrogen reservoir for consistent damping

• Oil-gas separation design to reduce shock fade

• Multi-stage adjustment:

  • Rebound damping

  • Compression damping

  • Spring preload via toothed collar

• Inflatable reservoir valve for pressure tuning

• Rubber bladder chamber reduces heat buildup

• C-ring retainer holds spring under heavy load

• Smooth, tactile feedback at each adjustment click

Construction

• Upper Mount: AL6061-T6 forged aluminum

• Main Tube: AL6061-T6 alloy

• Main Shaft: 42CRMO

• Spring Wire: 55CRSI

• Spring: Easy to remove & swap

• Warranty: 1 Year

Spring Rate Options

• 450 lbs — 80–100 kg (176–220 lbs)

• 550 lbs — 100–130 kg (220–286 lbs)

• 600 lbs — 130–180 kg (286–397 lbs)

Recommended Size

265mm Eye-to-Eye / 83mm Stroke (10.5”) — Fits most Surron, Talaria, and E-Ride Pro platforms.

Not sure? Measure your current shock before ordering. Custom sizes available upon request.

Fitment Compatibility

• Talaria MX3 / MX4 / XXX / MX5

• Surron LBX / LBS / L1E

• E-Ride Pro S / SS 1.0 / SS 2.0 / SS 3.0 / SR

• Segway X160 / X260

• Rawrr Mantis

• 79 Bike Falcon M

• Altis Sigma

• Ventus One

• RFN Apollo

• Rerode R1

FAQ

Q: Will this fit my Talaria or Surron?
A: Yes — 265mm x 83mm is the most common fit. Measure your current shock or reach out if unsure.

Q: Difference between RAB50RC and RAB53RV?
A: RAB50RC offers rebound + compression clickers and air reservoir tuning. The RAB53RV adds dual-speed compression for heavier or aggressive riders.

Still not sure? Hit up the REV Rides team — we’ll help get your suspension dialed.

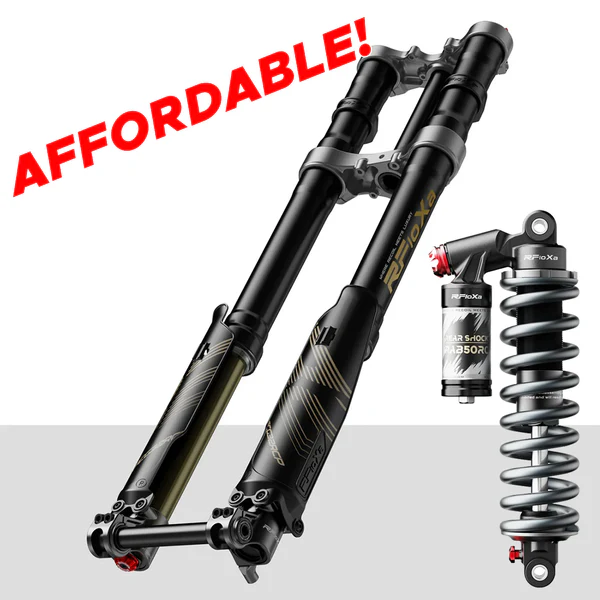

Fitment: AFFORDABLE Front & Rear Upgrade | RFLOXA Hawk32 + RAB50RC Suspension Kit | by RFLOXA | for Surron, Talaria, E-Ride Pro & More

• Surron Light Bee X

• Surron Light bee S

• Segway X260

• Segway X160

• Talaria Sting MX3

• Talaria Sting MX4

• Talaria Sting MX5

• Talaria XXX

• Eride Pro

• Eride pro S

• Eride pro SS

• Eride pro SS 2.0

• Eride pro SS 3.0

• Eride pro SR

• Ventus one

• 79bike Falcon-M

• Throne SRPNT

• Srpnt Moto By throne

• Rerode R1

• Rerode Ewatt 2.0

This product may be compatible with more models than shown above. Please see the product description for full details, or contact us for help with fitment.
