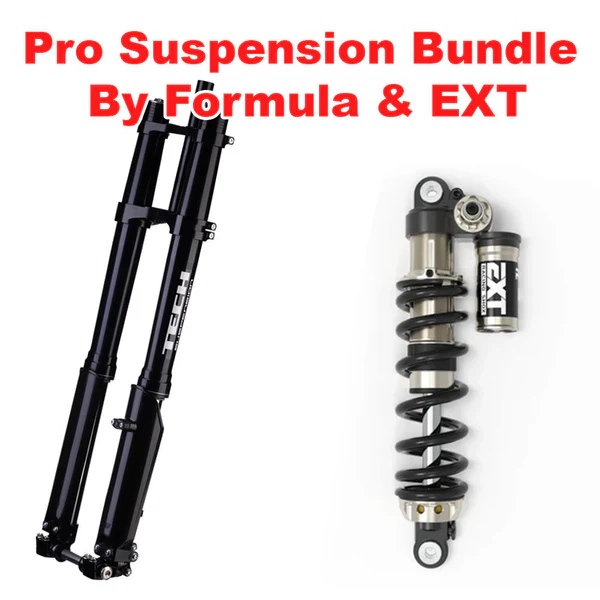

Pro Suspension Upgrade Bundle | By Formula & EXT | For E-Moto Platforms

This suspension bundle is built for riders who are ready to move past stock limitations and into real performance. We paired the Formula TECH E39 E-Moto Fork with the EXT Arma MX V3 Rear Shock to create a balanced, high-end front and rear suspension setup designed specifically for modern lightweight electric dirt bikes.

If you are riding harder, jumping bigger, or pushing your bike into terrain where control actually matters, this is the setup that transforms how your bike feels from front to rear.

What’s Included in This Bundle

Formula TECH E39 E-Moto Fork | 230mm Travel

The TECH E39 Fork by Formula is a purpose-built e-moto fork developed and assembled in Tuscany, Italy. It combines motocross-level chassis strength with tuning specifically designed for electric dirt bikes, giving you confidence on jumps, compliance in chop, and control on technical descents.

• 230 mm of travel for aggressive off-road riding and hard landings

• 39 mm hard-chromed alloy stanchions for strength and smooth action

• CNC-machined triple clamp with included drop crown

• Fully adjustable hydraulics with 32-click rebound and 22-click compression

• Low-friction bushings and heavy-duty seals for long service life

• Anodized aluminum outer tubes with forged lower feet

• Compatible with MTB brakes and Volar Sport Racing Brakes

• Dedicated axle and bushings for true plug-and-play hub fitment

• Fully rebuildable and customizable as your riding progresses

• Weight: 6.8 kg complete with axle, crown, and hardware

• Brake mount: 220 mm standard radial mount

Spring Rate Tuning Options

Every TECH E39 fork ships with a Medium spring pre-installed. Riders can fine-tune their setup using optional coil springs depending on terrain and riding style.

• Soft Spring (EX-S): Improved small-bump compliance and comfort for technical terrain

• Hard Spring (EX-H): Firmer support for heavier riders, big jumps, or MX-style riding

Springs are sold separately. Installation is quick and tuning changes are immediately noticeable.

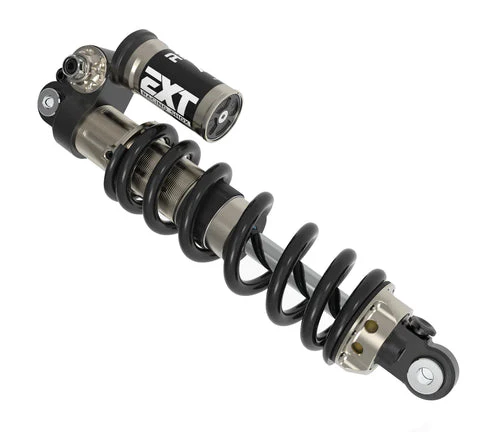

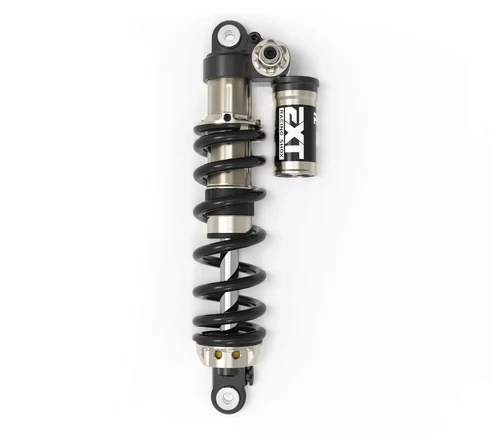

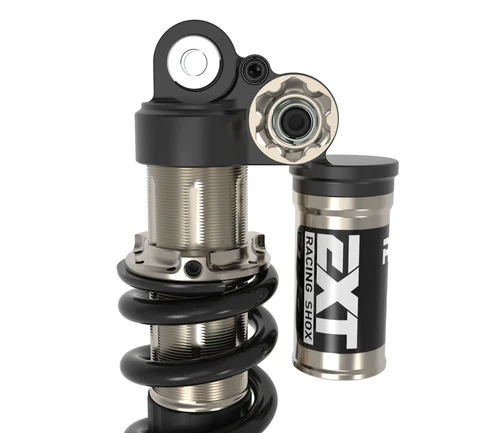

EXT Arma MX V3 Rear Shock (E-MX Damper)

The EXT Arma MX V3 is a direct bolt-on, high-performance rear shock engineered to handle the torque, weight, and riding demands of modern e-motos. Each shock is built and pre-tuned by EXT-USA based on rider and bike information you provide, so it arrives ready to ride.

• 4-way adjustable damping: LSC, HSC, LSR, and HBC

• Enhanced Hydraulic Bottom-Out Control with expanded adjustment range

• High-flow 29 mm main piston with 24 mm valve piston

• 14 mm shaft, 50 percent larger than most coil shocks for durability

• Engineered rebound circuit separating bump and rebound oil flow

• Ultra low-friction coating and low-friction seals

• Very low reservoir pressure at 55 PSI for maximum sensitivity

• Low hysteresis for fast response and consistent damping

• Progressive mid-stroke support with excellent end-stroke control

• Low-profile rebound knob for easier spring changes

Each shock includes one lightweight spring and all required mounting hardware for true bolt-in installation. No additional parts required.

Rear Shock Spring Guide

• Up to 140 lbs: 400 lb spring

• 140–180 lbs: 450 lb spring

• 180–210 lbs: 500 lb spring

• 210–240 lbs: 550 lb spring

• 240 lbs and up: 600 lb spring

This guide is a baseline. Always factor in riding gear and personal preference. Firmer or softer setups can be achieved by selecting a spring above or below the recommended range.

Important Fitment & Brake Notes

The TECH E39 fork is not yet plug-and-play with larger calipers found on certain platforms, including Altis Sigma, SRPNT Moto, E Ride Pro SS 3.0, and E Ride Pro SR. Brake adapters for these setups are currently in development.

For riders running Volar Sport Racing Brakes, dedicated adapters will be offered by REV Rides. Contact our team for special orders or fitment guidance.

Headset bearings are not included. We highly recommend adding a headset bearing kit so your installation goes smoothly from day one.

Fitment

• Sur-Ron Light Bee X, LBX, Ultra

• Talaria Sting MX3, MX4, XXX

• E Ride Pro S, SS 2.0, SS 3.0, SR

• Altis Sigma and Altis Sigma MX

• RAWRR Mantis X

• Arctic Leopard XE Pro and XE Pro S

• Ventus One

• RFN Apollo, 79Bike, E-Boost

Why This Bundle Makes Sense

Suspension works best when the front and rear are balanced. This bundle gives you a true performance match, motocross-grade front control paired with a rider-specific rear shock that can handle real abuse. Whether you are chasing lap times, building a hard-charging trail bike, or dialing in jump performance, this setup delivers confidence without compromise.

If you are serious about how your e-moto rides, this is one of the biggest upgrades you can make.

Fitment: Pro Suspension Upgrade Bundle | By Formula & EXT | For E-Moto Platforms

• Surron Light Bee X

• Surron Light bee S

• Segway X260

• Altis Sigma

• Segway X160

• Talaria Sting MX4

• Talaria Sting MX3

• Talaria XXX

• Eride Pro

• Eride pro S

• Eride pro SS

• Eride pro SS 2.0

• Srpnt Moto By throne

• Ventus one

• Rerode R1

• 79bike Falcon-M

• Throne SRPNT

• Rawrr Mantis X

This product may be compatible with more models than shown above. Please see the product description for full details, or contact us for help with fitment.
