RFloXa Hawk 31 Front Fork | E-Moto Suspension for Surron, Talaria & More...

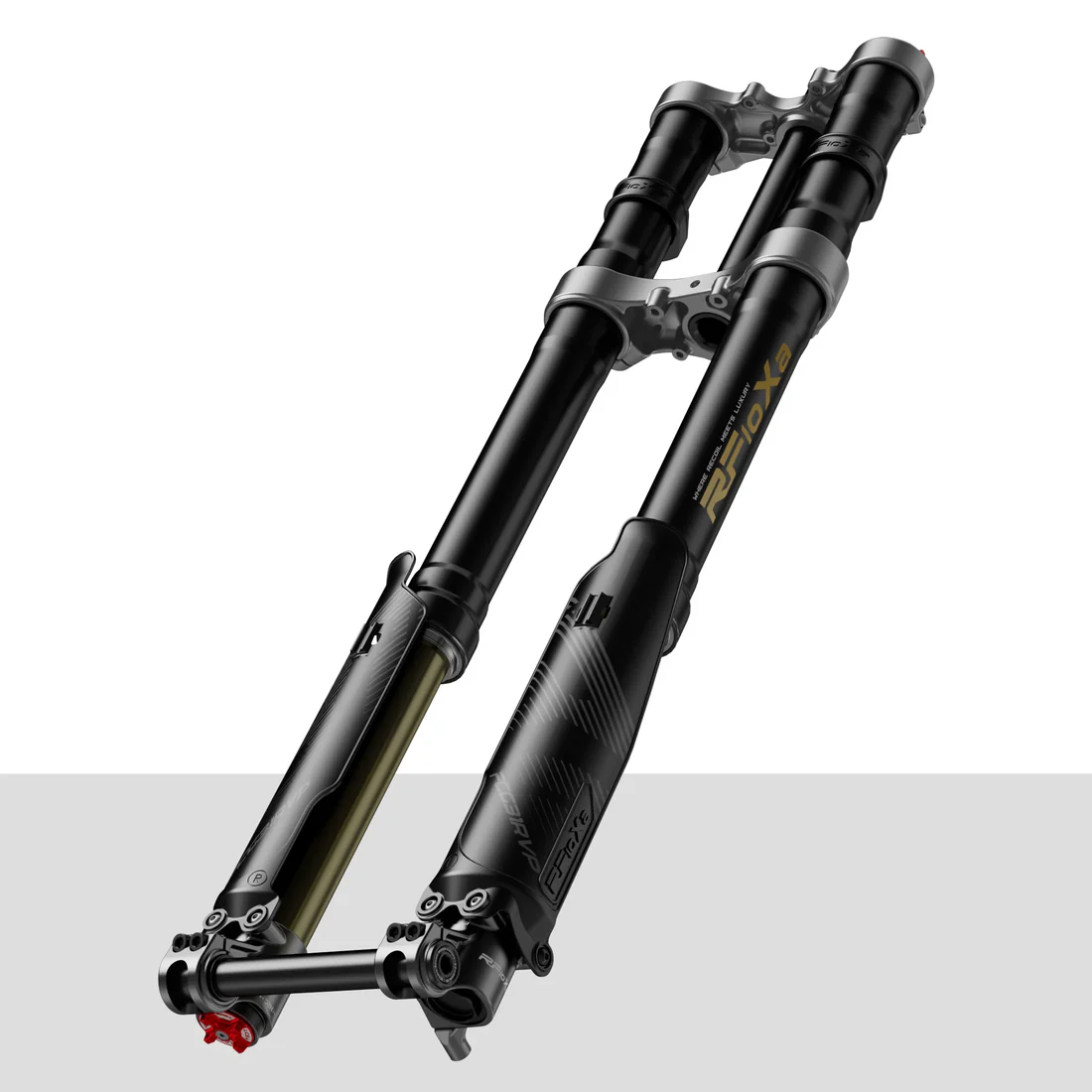

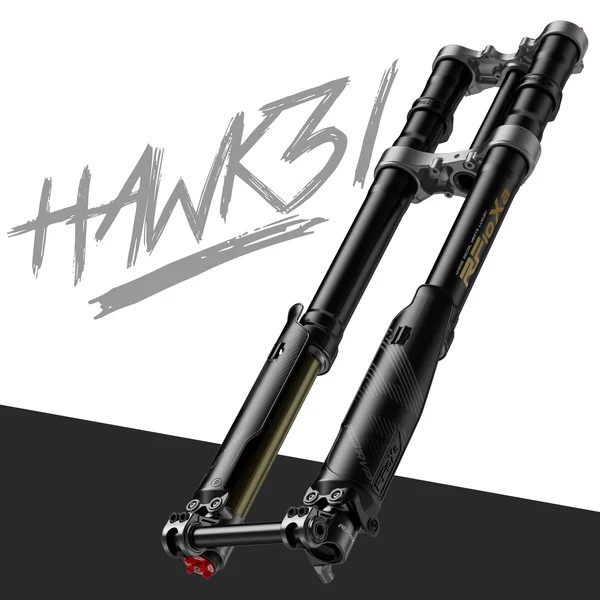

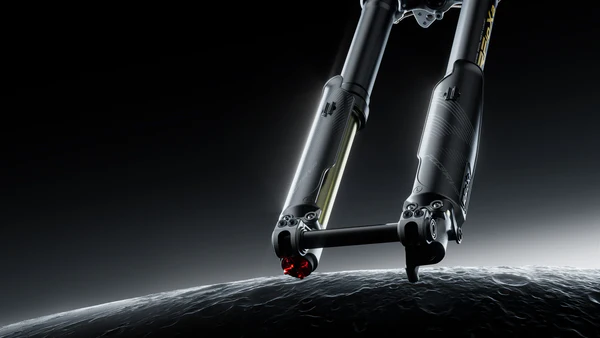

RFLOXA Hawk 31 Front Fork – 203mm Travel | Performance Suspension for Surron, Talaria, E-Ride Pro & More

Built for electric dirt bike riders looking for reliable, high-performance suspension without going full pro-tier, the RFLOXA Hawk 31 Front Fork delivers where it counts. With 203mm of travel, full adjustability, and a durable forged aluminum build, it’s the perfect choice for downhill trails, hard-packed tracks, and everything in between.

If you’re looking for more travel (228mm) or a wider clamp setup, check out the Hawk 31 PRO/MAX version.

🔧 Key Features:

• 203mm of plush travel (228mm available in PRO/MAX versions)

• 37mm stanchions for strength and stiffness

• 74mm caliper mount spacing – compatible with 203mm rotors (upgradeable to 220mm with adapter)

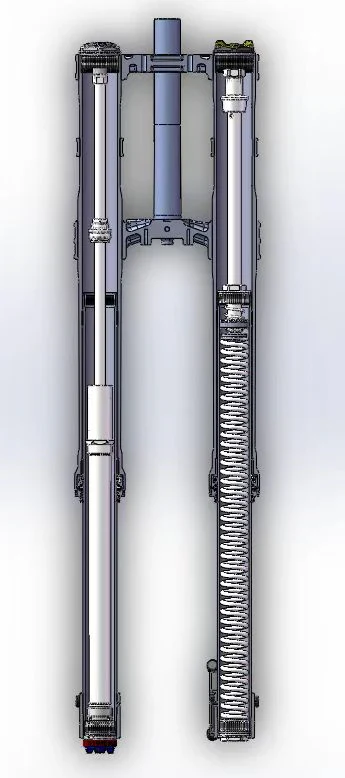

• Asymmetrical inverted fork design – independent oil-spring damping left & right

• Multi-stage manual adjusters for:

• High-speed compression

• Low-speed compression

• Rebound

• Spring preload

• Oil pressure bottom-out support – absorbs big hits without jarring your frame

• Dual valve compression plate design for smoother damping

• Low-friction, temperature-resistant suspension oil for all-weather consistency

🧱 Construction:

• Bottom Brackets: AL6061-T6 forged aluminum

• Fork Tubes: AL7075-T6 alloy

• Spring Wire: 55CRSI

• Fork Center Distance: 750–800mm

⚖️ Spring Rate Options:

• 45 lb spring – Riders ≤ 100kg (≤ 220 lbs)

• 60 lb spring – Riders 100–130kg (220–285 lbs)

• Progressive 45–60 lb spring – Riders 80–130kg (175–285 lbs)

✅ Fitment Compatibility:

• Surron Light Bee LBX / LBS / L1E

• Talaria Sting MX3 / MX4 / XXX

• Segway X260 / X160

• E-Ride Pro S / SS 1.0 / SS 2.0

• Rawrr Mantis

• 79 Bike Falcon M

• Ventus One

• RFN Apollo

• Rerode R1

⚠️ Fitment Notes:

Some frames, like the Talaria Sting R (MX4), may require minor grinding on the fork outer tubes to avoid contact with the frame — similar to Fox 40 installs on Light Bee. This is normal with aftermarket suspension and will not affect performance if done carefully.

⚠️ Brake Adapter Notice (Front Fork Only):

Currently not plug-and-play with larger brake calipers found on:

• Altis Sigma

• SRPNT Moto

• E-Ride Pro SS 3.0

• E-Ride Pro SR

These setups require a brake adapter that is not yet available — but it’s in the works.

If you’re running Volar Sport Racing calipers, compatibility will vary depending on your bike, wheel, and rotor setup. This suspension platform is somewhat universal, and some models may require additional parts to achieve proper fitment.

💬 Need help? Reach out and we’ll get you dialed in: REVRides.com/contact

Frequently Asked Questions

Q: Does the Hawk 31 fit my Surron or Talaria?
A: Yes – it’s a direct fit for most models. On Talaria Sting R (MX4), minor frame contact may require sanding or grinding on the fork lowers, as is common with many aftermarket forks.

Q: How does it compare to the Hawk 31 PRO?
A: The standard Hawk 31 is a more affordable version with all the key adjustments and 203mm travel. The PRO/MAX versions offer wider triple clamps, CNC machining, and up to 228mm travel for more aggressive riders.

Q: How does it stack up to Fastace ALX13RC forks?
A: The Hawk31 features multi-stage preload, dual compression damping, and a sturdier bottom-out system — giving it better small bump sensitivity and more adjustability out of the box.

Fitment: RFloXa Hawk 31 Front Fork | E-Moto Suspension for Surron, Talaria & More...

• Surron Light Bee X

• Surron Light bee S

• Segway X260

• Segway X160

• Eride Pro

• Eride pro SS

• Eride pro SR

• Eride pro S

• Eride pro SS 2.0

• Eride pro SS 3.0

• 79bike Falcon-M

• Ventus one

• Talaria Sting MX3

• Talaria Sting MX4

• Talaria Sting MX5

• Talaria XXX

• Altis Sigma

• Throne SRPNT

• Rerode R1

• Rawrr Mantis

• Rawrr Mantis X

• Apollo/RFN Ares Rally Pro

• Beta Explorer Emoto

• Srpnt Moto By throne

• Ventus one+ plus

• Rerode Ewatt 2.0

This product may be compatible with more models than shown above. Please see the product description for full details, or contact us for help with fitment.
