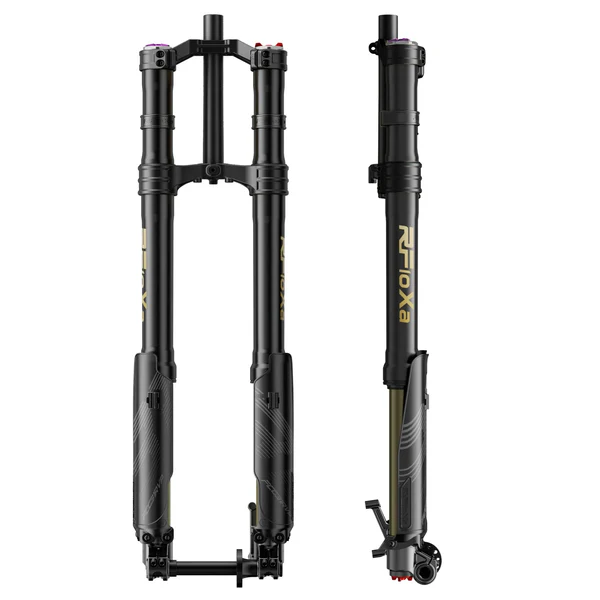

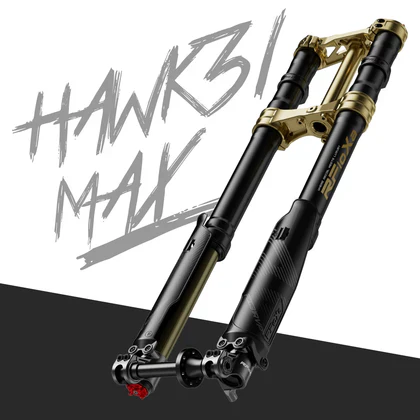

RFloXa Hawk 31 Max Front Fork 228mm Travel for Electric Dirt Bikes

RFloXa Hawk 31 Max Front Fork 228mm Travel | Wide Clamp Suspension for Electric Dirt Bikes

The RFloXa Hawk 31 Max is a serious upgrade for riders looking to maximize front-end stability, suspension adjustability, and downhill performance. With 228mm of plush travel, a wide 162mm triple clamp, and a CNC-machined design, this fork is purpose-built for electric dirt bikes and downhill builds that demand top-tier control and customization.

Whether you’re flying through the woods, hitting jumps, or carving corners, the Hawk 31 Max delivers performance that rivals premium motocross forks — without the premium price tag.

🛠 Key Features:

• 228mm of travel for aggressive off-road use

• 37mm stanchion tubes with 800mm center fork length

• 162mm clamp center distance – wider than most stock forks for increased tire clearance and stability

• 74mm caliper mount spacing – compatible with 203mm & 220mm disc brakes (adapter required)

• AL6061-T6 & AL7075-T6 forged aluminum body for strength and lightweight performance

• Inverted oil-spring damping system with asymmetrical leg function

Multi-stage damping control:

• High-speed compression

• Low-speed compression

• Rebound damping

• Spring preload

• Advanced bottom-out support via oil pressure system

• Dual-valve internal damping for stable, responsive feedback

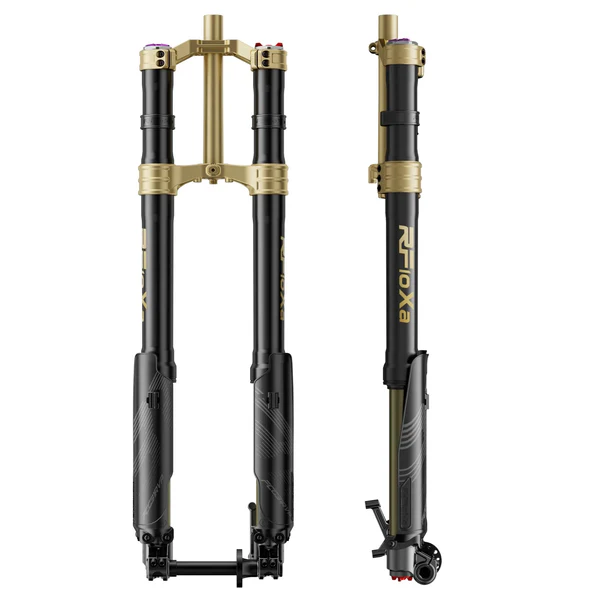

• Available in black or gold triple clamp finishes

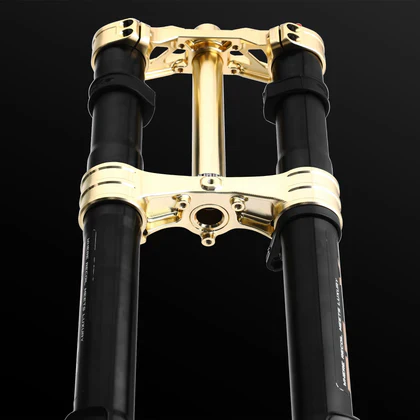

🔧 MAX Widened Triple Clamp Kit Includes:

• Upper and lower CNC triple clamps

• Matching steering stem

• Raised flange

• Widened front axle & bushings

• All mounting hardware included

• Available in Black, Red, Blue, Purple, Gun Gold

⚖️ Spring Rates:

• 45 lb spring – Ideal for riders ≤ 220 lbs (≤ 100kg)

• 55 lb spring – Ideal for riders 220–285 lbs (100–130kg)

✅ Fitment Compatibility:

• Surron LBX / LBS / L1E

• Talaria Sting MX3 / MX4 / XXX

• Segway X160 / X260

• E-Ride Pro S / SS 2.0 / SS 3.0 / SR

• 79-Bike Falcon M

• Rerode R1

• Altis Sigma

• RAWRR Mantis X / Standard

Supports both 19” and 21” front wheel configurations with increased clearance from the widened clamp spacing.

⚠️ Important Notes:

Currently not plug-and-play with larger brake calipers found on:

• Altis Sigma

• SRPNT Moto

• E-Ride Pro SS 3.0

• E-Ride Pro SR

These bikes require a brake adapter that is not yet available – but it’s in development now! If you’re running Volar Sport Racing calipers, REV Rides can special order a front adapter for you. Just reach out and we’ll get you squared away.

💡 Why Choose the Hawk 31 Max?

• More tire clearance & stability thanks to the 16mm-wider clamp spacing

• More tuning options with multi-stage damping and spring preload control

• More strength with forged AL6061 & AL7075 construction

• More bottom-out protection for big landings and technical terrain

• More confidence in every ride

Fitment: RFloXa Hawk 31 Max Front Fork 228mm Travel for Electric Dirt Bikes

• Surron Light Bee X

• Surron Light bee S

• Segway X260

• Segway X160

• Eride Pro

• Eride pro SS

• Eride pro SR

• Eride pro S

• Eride pro SS 2.0

• 79bike Falcon-M

• Ventus one

• Talaria Sting MX3

• Talaria Sting MX4

• Talaria Sting MX5

• Talaria XXX

• Throne SRPNT

• Rerode R1

• Rawrr Mantis

• Rawrr Mantis X

• Apollo/RFN Ares Rally Pro

• Beta Explorer Emoto

This product may be compatible with more models than shown above. Please see the product description for full details, or contact us for help with fitment.
