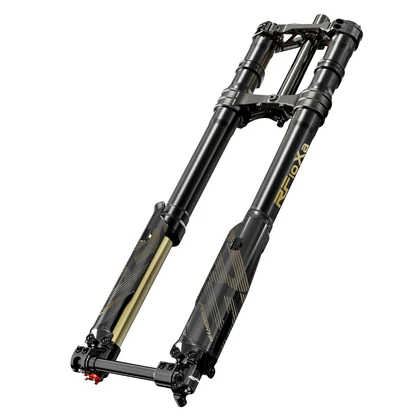

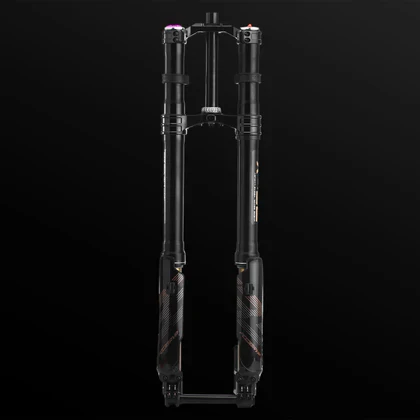

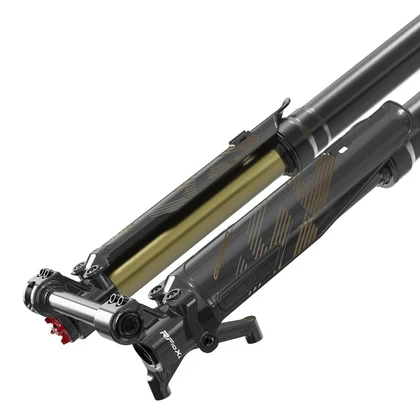

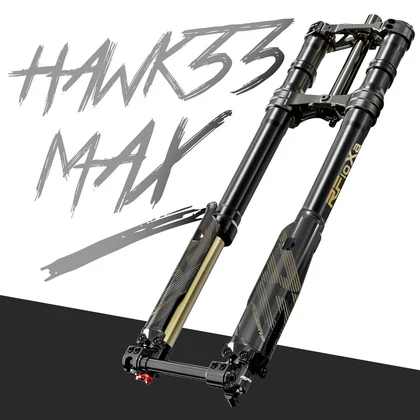

RFloXa Hawk33 Max Fork | By RFloXa Suspension | For Talaria Sting MX5

Overview

The RFloXa Hawk33 Max is a premium long-travel suspension fork engineered specifically for the Talaria Sting MX5. Designed as a direct-fit upgrade, it arrives with a preloaded bearing kit already installed so you can bolt it on immediately with no additional parts required. If you prefer the fork without the pre-pressed bearing kit, simply leave a note at checkout.

Built for aggressive off-road riders, the Hawk33 Max delivers precise damping control, customizable spring options, and a durable construction that holds up to hard hits, jumps, and demanding terrain. Its inverted oil-spring system and multi-stage adjustability make it a top-tier upgrade for MX5 owners looking to dramatically improve front-end performance.

Spring Rate Recommendations

For 203 mm Travel (19"/21" compatible)

• 45 lbs spring: riders ≤100 kg

• 60 lbs spring: 100–130 kg (ideal for heavy jumping)

• 45–60 lbs progressive spring: 80–130 kg

For 228 mm Travel (19"/21" compatible)

• 45 lbs spring: riders ≤100 kg

• 55 lbs spring: 100–130 kg

Performance Features

• Inverted Oil-Spring Damping System for improved stiffness and immediate response

• Multi-stage adjustability including high-speed compression, low-speed compression, rebound, and spring preload

• Purpose-built for the MX5 for accurate fitment with both 19 inch and 21 inch wheel setups

Construction & Materials

• Bottom brackets made from AL6061-T6 forged aluminum

• Fork tubes constructed from AL7075-T6 aluminum for high strength-to-weight ratio

• High-durability 55CRSI spring wire for long-term performance

• CNC-machined triple clamp for precise alignment and structural rigidity

Technical Specifications

• Center Distance: 750–800 mm

• Main Piston Travel: 203–228 mm

• Tube Diameter: ∅37 mm

• Caliper Mount Spacing: 95.5 mm

• Disc Brake Size: ∅220 mm (upgradeable)

• Damping System: Inverted oil-spring

• Adjustments: High-speed compression, low-speed compression, rebound, spring preload

Fitment

• Talaria Sting MX5

Fitment: RFloXa Hawk 33 Max Front Fork | Advanced E-Moto Suspension for Talaria MX5

• Surron Light Bee X

• Surron Light bee S

• Segway X260

• Segway X160

• Eride Pro

• Eride pro SS

• Eride pro SR

• Eride pro S

• Eride pro SS 2.0

• Eride pro SS 3.0

• 79bike Falcon-M

• Ventus one

• Talaria Sting MX3

• Talaria Sting MX4

• Talaria Sting MX5

• Talaria XXX

• Altis Sigma

• Throne SRPNT

• Rerode R1

• Rawrr Mantis

• Rawrr Mantis X

• Apollo/RFN Ares Rally Pro

• Beta Explorer Emoto

• Srpnt Moto By throne

• Ventus one+ plus

• Rerode Ewatt 2.0

This product may be compatible with more models than shown above. Please see the product description for full details, or contact us for help with fitment.
