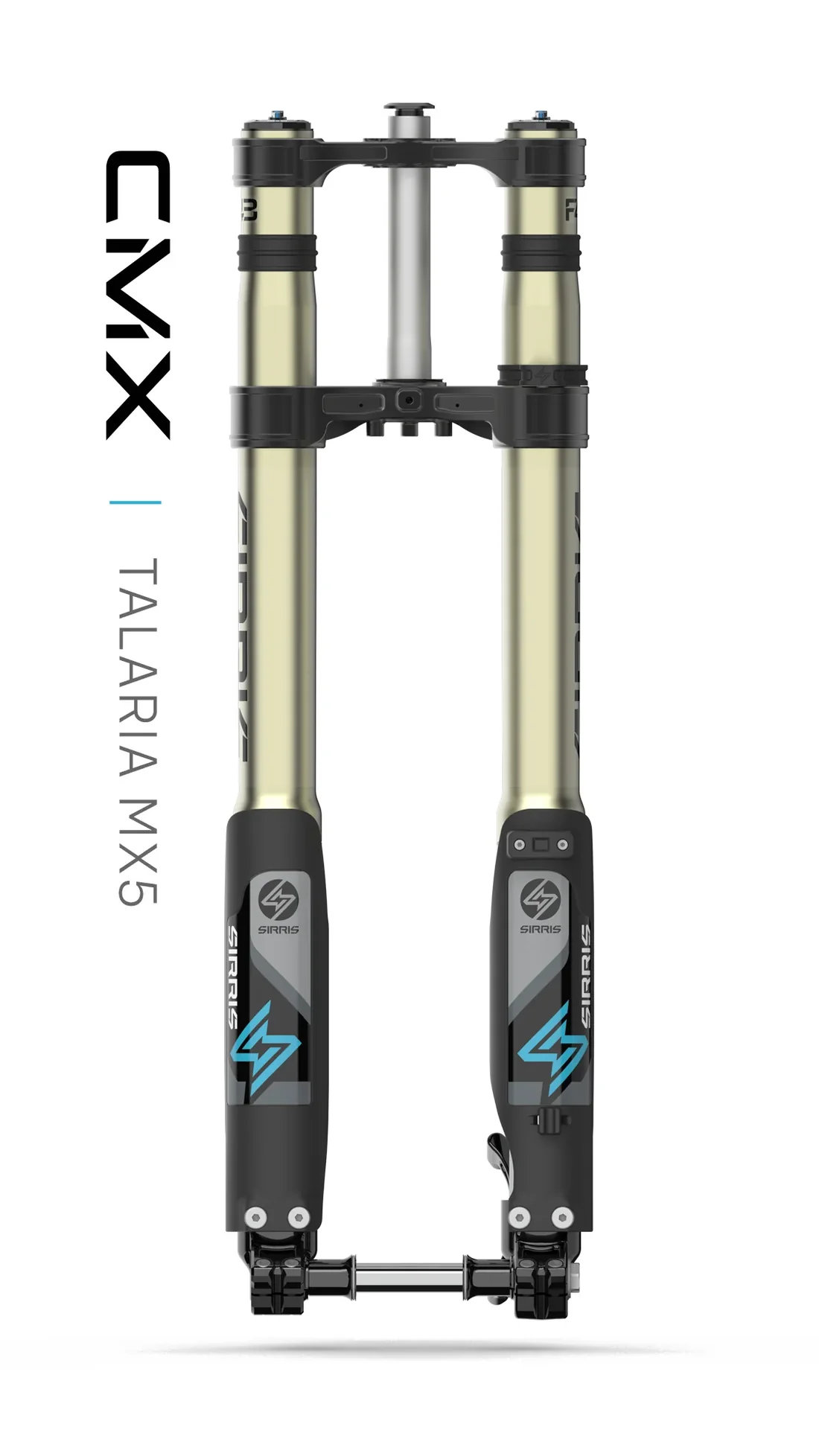

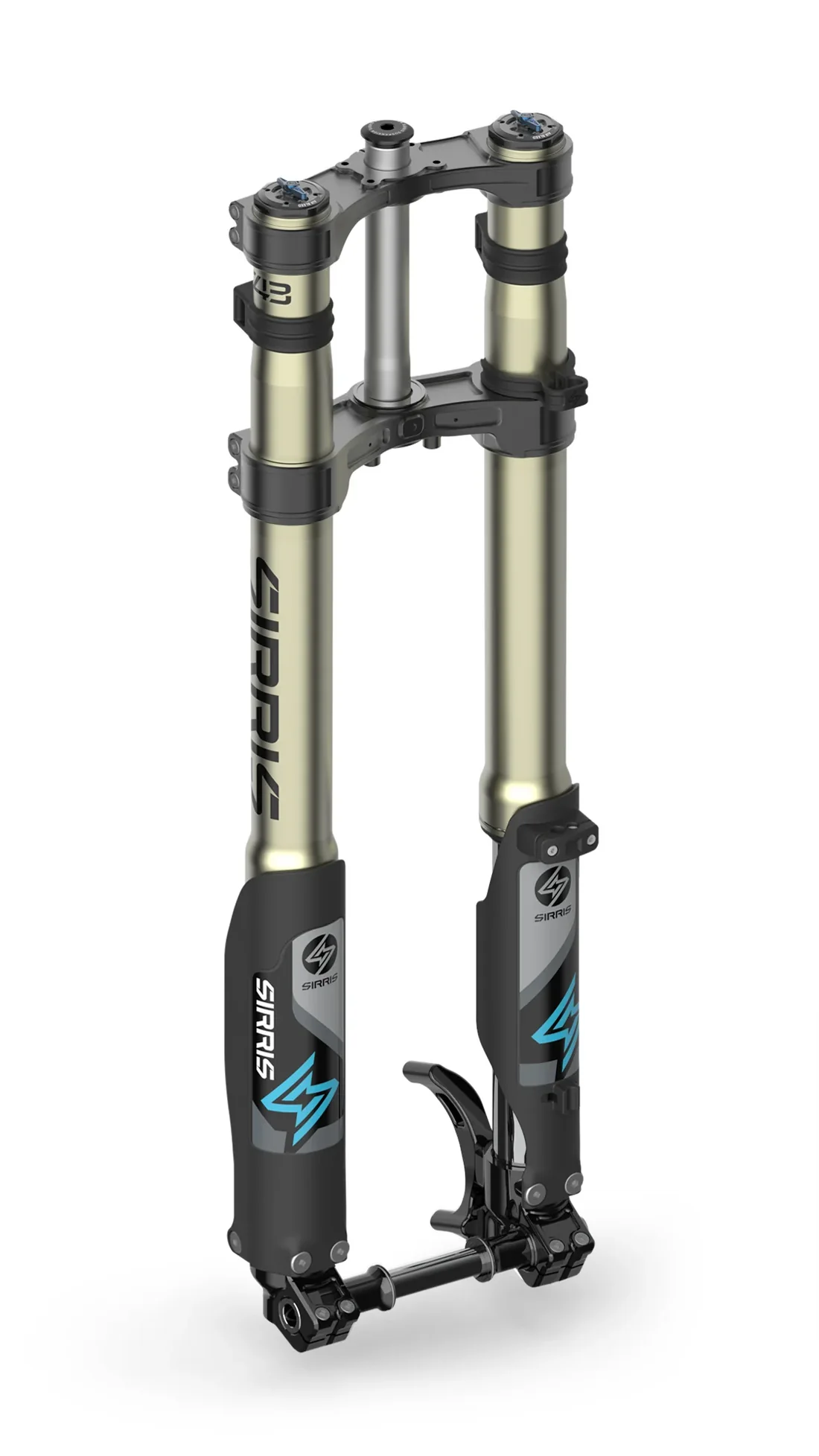

Sirris F43 CMX 220mm Tool-Free LSC Fork | By Sirris Suspension | For Talaria MX5

Built to Dominate Any Terrain, Any Time

At REV Rides we spend a lot of time dialing in suspension for compact e-moto platforms, and the Sirris F43 CMX Fork is one of the most serious performance upgrades you can install on the Talaria MX5. This fork brings true motocross level suspension engineering to a lightweight electric bike that was built to ride hard.

The F43 CMX combines an oversized 43mm upside-down race chassis with Sirris’ proprietary CMX tuned closed cartridge damping system. The result is razor sharp steering response, improved stability, and unreal front end confidence whether you are riding trails, hitting jumps, or pushing the bike at higher speeds. With 220mm of suspension travel, tool-free compression adjustment, and race grade materials throughout, this fork dramatically improves control compared to stock suspension.

Sirris developed the F43 platform by taking their proven race fork architecture and resizing it specifically for compact electric motos. The 775mm extended chassis, oversized stanchions, and billet clamps create a longer, stronger, and more planted front end while still keeping the bike agile and responsive. The goal is simple, eliminate flex, improve durability, and give riders predictable suspension performance when pushing their bike harder.

Oversized Chassis Designed to Outperform

• 43mm hard chrome stanchions resist flex, dents, and wear

• 7XXX series hard anodized uppers maximize strength and durability

• 775mm extended fork length creates a longer and more stable front end

• 220mm travel delivers 20mm more suspension travel than stock

• Billet aluminum triple clamps increase stiffness and reduce twisting

• 178mm fork spacing allows nearly unlimited tire choices

• Direct mount stem compatibility improves cockpit stiffness

• Ultra stiff chromoly race axle improves steering precision and control

• Motorcycle style top cap improves steering bearing tension adjustment

• Replaceable caliper mounts and wheel spacers allow brake and wheel upgrades

This design focuses on more than stiffness alone. The F43 CMX is built to maintain balance, absorb heavy hits, and deliver long-term durability for riders pushing harder on rough terrain or track riding.

Race Grade CMX Closed Cartridge Damping

At the core of the fork is the CMX tuned symmetrical closed cartridge damper. This advanced system provides professional level damping with independent oil circuits that separate lubrication and damping oil. That separation allows the fork to maintain consistent feel even during long aggressive riding sessions.

• CMX Compact Motocross Tune designed for aggressive riding

• True symmetrical closed cartridge design delivers fade free damping

• Independent oil circuits isolate damping and lubrication oil

• High flow pistons with tunable compression and rebound valving

• Hydraulic bottom out control protects against harsh landings

• Hard anodized internal components reduce wear and increase longevity

• Premium Daido bushings and NOK MX seals ensure smooth operation

The CMX tuning provides a planted and predictable ride feel. From aggressive trail riding to high speed track laps, the fork remains composed and highly tunable for rider preference.

Tool-Free Compression Adjustment

The F43 CMX features tool-free compression adjusters so riders can quickly fine tune the suspension without tools. With nearly 30 clicks of external adjustment, dialing in the fork for different terrain or riding styles is quick and easy.

Direct Mount Stem System

The Sirris steerer tube and motorcycle-style top cap system are designed for direct mount stems. This improves cockpit stiffness and helps maintain consistent steering bearing torque similar to full-size motocross bikes.

Optional Drop Clamp for Big Wheel Builds

The optional drop clamp raises the front end an additional 25mm, extending overall fork length to approximately 800mm. This allows riders to run a 21 inch front wheel while maintaining proper bike balance when paired with longer rear suspension.

Axle and Brake Mount System

• Ultra stiff chromoly axle improves steering precision

• Replaceable caliper mount brackets allow brake upgrades

• Designed for 220mm brake rotor setups

• All Sirris brake brackets are designed for 220mm rotors

Technical Specifications

• Architecture: Upside Down Fork

• Travel: 220 mm

• Free Length: 775 mm

• Extended Length with Drop Clamp: ~800 mm

• Fork Spacing: 178 mm

• Weight: 4 kg per leg

• Stanchions: Ø43 mm high tensile steel, hard chrome

• Outer Tubes: Seamless 7050 aluminum, Type III hard anodized

• Drop Outs: 6061 aluminum, Type II anodized

• Axle: Ultra high tensile hard chromed axle

• Triple Clamps: Billet 6061 aluminum, Type II anodized (Black or Blue)

• Steer Tube: Seamless 7050 aluminum

• Damping: Symmetrical adjustable closed cartridge with modified IFP

• Compression Adjustment: External tool-free LSC adjuster

• Rebound: Dual side adjustable

• Seals: NOK MX seals

• Bushings: Daido MX bushings

• Fork Guards: High impact PP wraparound guards

Spring Rate Options

• Medium: 140 to 180 lb rider weight, 3.6 / 3.6 springs

• Heavy: 180 to 220 lb rider weight, 4.0 / 3.6 springs

Rider weight ranges are calculated without riding gear. Approximately 15 pounds of riding gear is factored into the recommended range. Any upgrades such as heavier batteries or controllers should be added to rider weight when selecting spring rates.

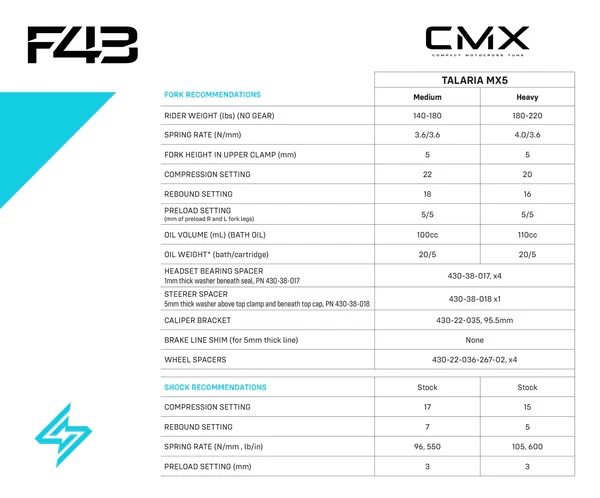

CMX Tune Setup Notes

• Factory settings are measured in clicks from the fully closed position

• Back adjusters out from the closed position to reach factory settings

• Riders near a weight cutoff may adjust preload to fine tune sag

• Aggressive riders may benefit from moving up one spring class

• Riding style and terrain may require additional tuning

Fitment

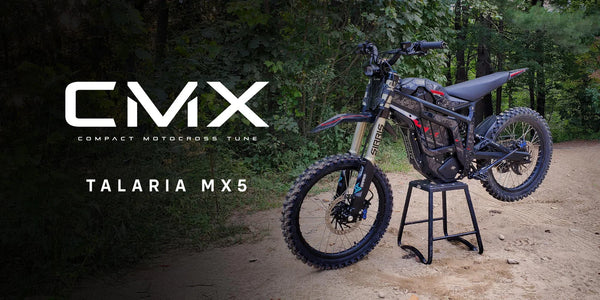

• Talaria MX5

Who This Fork Is Perfect For

• Talaria MX5 riders building a race ready or track focused setup

• Trail riders who want maximum front end stability and durability

• High power builds that need true motocross level suspension performance

Fitment: Sirris F43 CMX 220mm Fork | Tool free LSC | for Talaria MX5

• Talaria Sting MX5

This product may be compatible with more models than shown above. Please see the product description for full details, or contact us for help with fitment.
