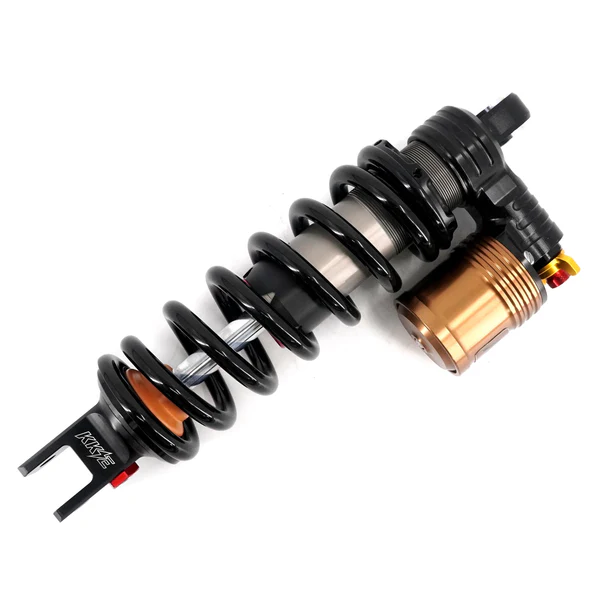

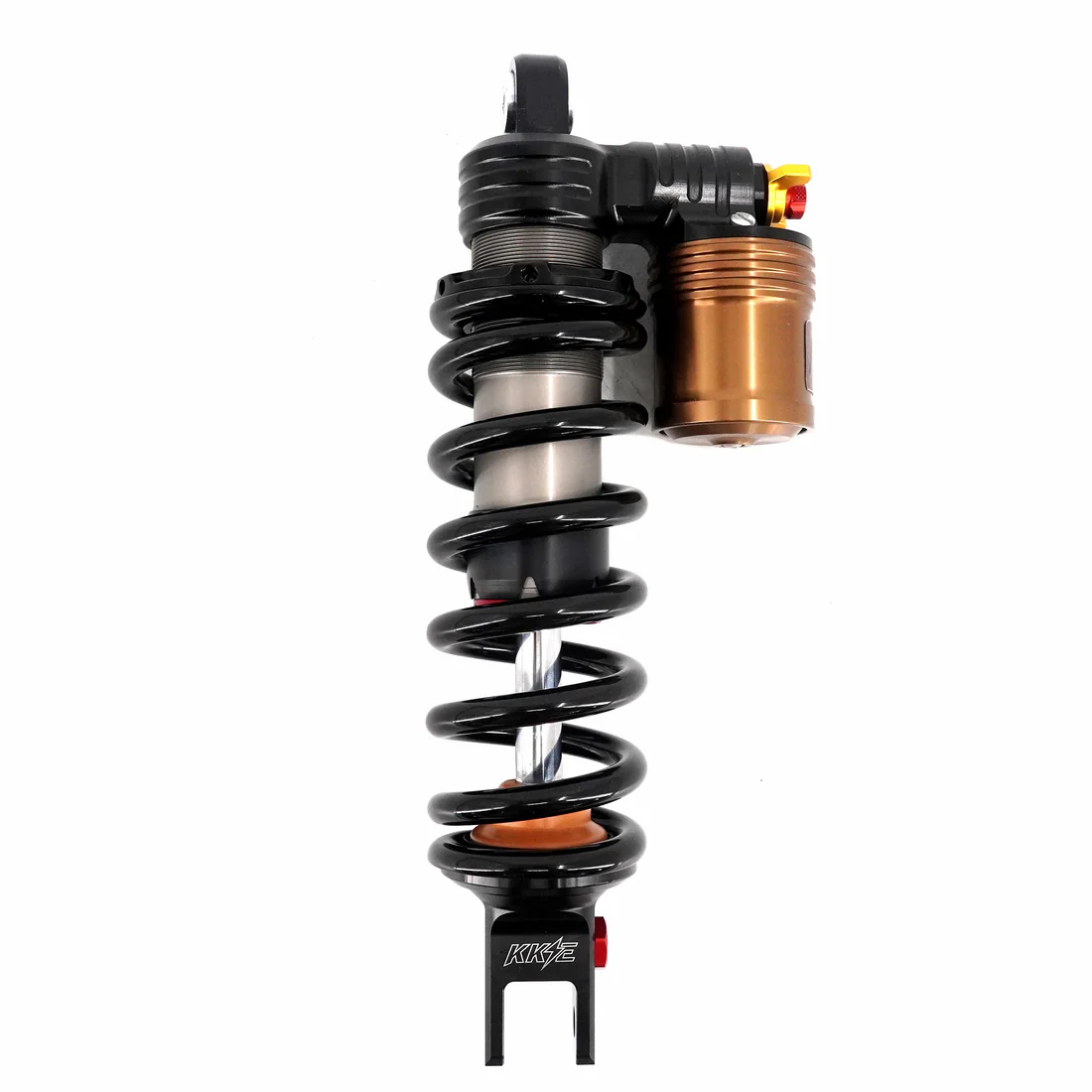

KKE Upgraded Rear Suspension Shock Absorber | By KKE | For SurRon Ultra Bee Electric Dirt Bike

This upgraded KKE rear shock is a serious performance improvement for the SurRon Ultra Bee, built for riders who want more control, better support, and consistent damping across aggressive trail and mixed riding. KKE designed this shock around a large 40mm bore and a 500lb spring rate, giving the Ultra Bee a much more planted feel under acceleration, braking, and repeated hits.

Every major component is CNC machined from high-grade aluminum alloys, with a hardened and chrome-plated piston rod and professionally calculated oil channels to keep damping predictable and fade-resistant. Internal hydraulic cushioning and upgraded all-metal internals further improve durability and long-term performance, especially for riders pushing the bike harder than stock suspension allows.

Technical Specifications

• Total Length: 320mm

• Top Mounting Size: 10 x 24

• Bottom Fork Size: 10 x 24.2

• Upper Mount: AL6061-T6, matte silver or black, full CNC machining

• Lock Nut: AL6061-T6, matte silver or black, full CNC machining

• Spring Guide Bushing: POM, black, oil cylinder protection

• Lower Fork: AL6061-T6, matte silver or black, full CNC machining

• High-Speed Compression Adjuster: AL6061-T6, gold, full CNC precision machining

• Low-Speed Compression Adjuster: AL6061-T6, red, full CNC precision machining

• Air Chamber: AL6061-T6, matte silver or champagne gold, precision-drawn tube

• Oil Chamber: AL7075-T6, raw aluminum, precision machined with honing process

• Piston Rod: 40Cr steel, nickel plated then hard chrome plated

• Shock Spring: 55CrSi-C-GB, left-hand high-performance spring

• Shock Pad: Polyurethane, yellow, automotive-grade performance material

Key Performance Features

• 40mm large cylinder bore for increased oil volume and tunable damping

• Upgraded 500lb spring rate for stronger support and improved stability

• 16.0mm piston rod optimized for rebound and compression oil flow balance

• High-speed compression adjustment for a wider tuning range

• Internal hydraulic cushioning for smoother bottom-out control

• All internal rubber components replaced with upgraded metal internals

• Professionally calculated oil channels to maximize shock efficiency

• Imported high-performance shock oil for stable damping and low temperature fade

• Extensively tested and professionally tuned damping setup

Adjustment Range

• Rebound Adjustment: 15 ± 2 clicks

• Low-Speed Compression: 18 ± 3 clicks

• High-Speed Compression: 18 ± 3 clicks

• Preload Adjustment Range: 0 to 10mm

Rider Weight Recommendation

The included 500lb spring is recommended for riders weighing approximately 65 to 85 kg. With the available click adjustments, this shock can effectively handle around 90 percent of real-world road and trail conditions when properly tuned.

Fitment

• SurRon Ultra Bee 2023

• SurRon Ultra Bee 2024

• SurRon Ultra Bee 2025

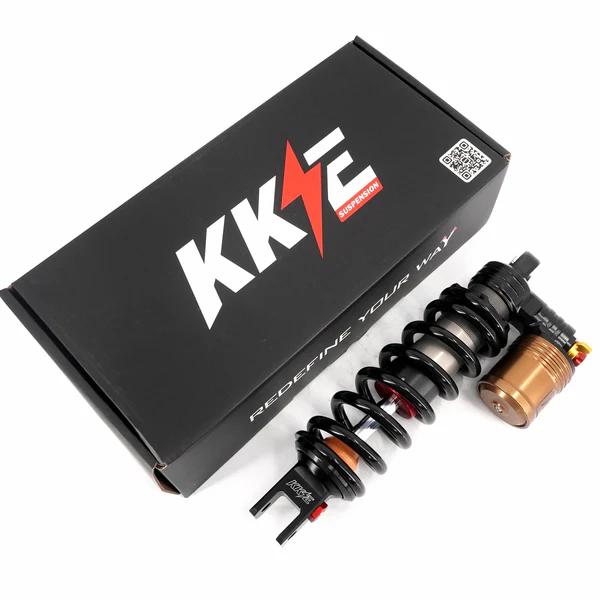

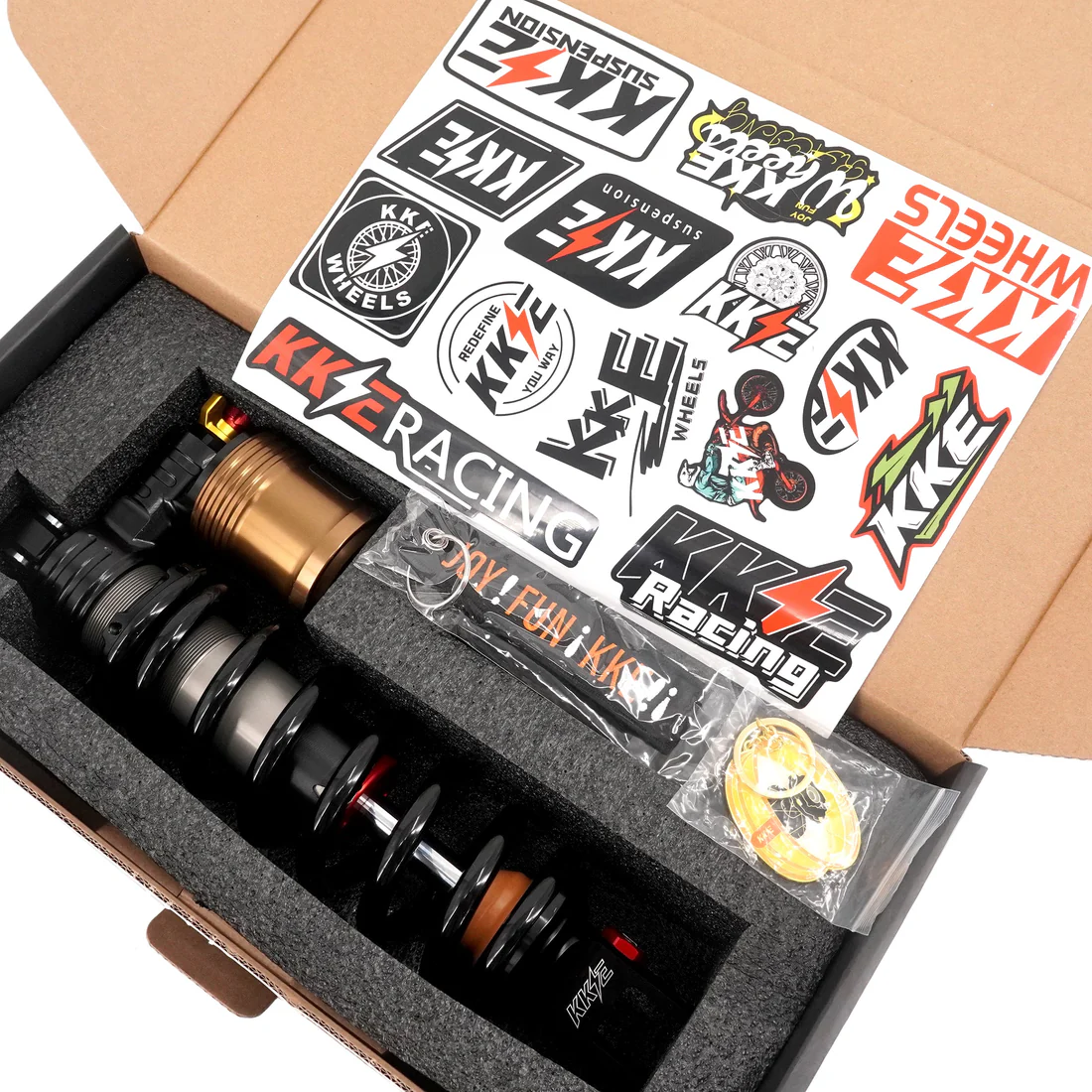

Package Includes

• KKE rear shock absorber fully assembled with 500lb spring, 1 set

• KKE premium sticker, 1 piece

• KKE special-design keychain, 2 pieces

Available Color Options

• Black shock spring with bronze air chamber

• Gold shock spring with silver air chamber

• Gold shock spring with bronze air chamber

Fitment: Upgraded Rear Suspension Shock Absorber | By KKE | For SurRon Ultra Bee Electric Dirt Bike

• Surron Ultra Bee

This product may be compatible with more models than shown above. Please see the product description for full details, or contact us for help with fitment.
